Over the last few years, my home lab has transformed from a box that I tinker with into a box that I rely on. At first, it ran some random services I’d spin up occasionally, but now it’s my NAS, AI inference box, photo library, and backup server. As a result, it deserves a little bit more TLC than I have given it in recent years. I’ve kept the same old Corsair mid-tower case for essentially its entire lifespan, and when it was time to give it a big storage upgrade, I decided it was also time to put it in a case befitting a true home server, and it’s one of the best upgrades I’ve ever made.
Despite their quirks, old server-grade processors are perfect for home lab experiments
I went with the same brand that houses literally every other desktop computer in my house: Fractal.

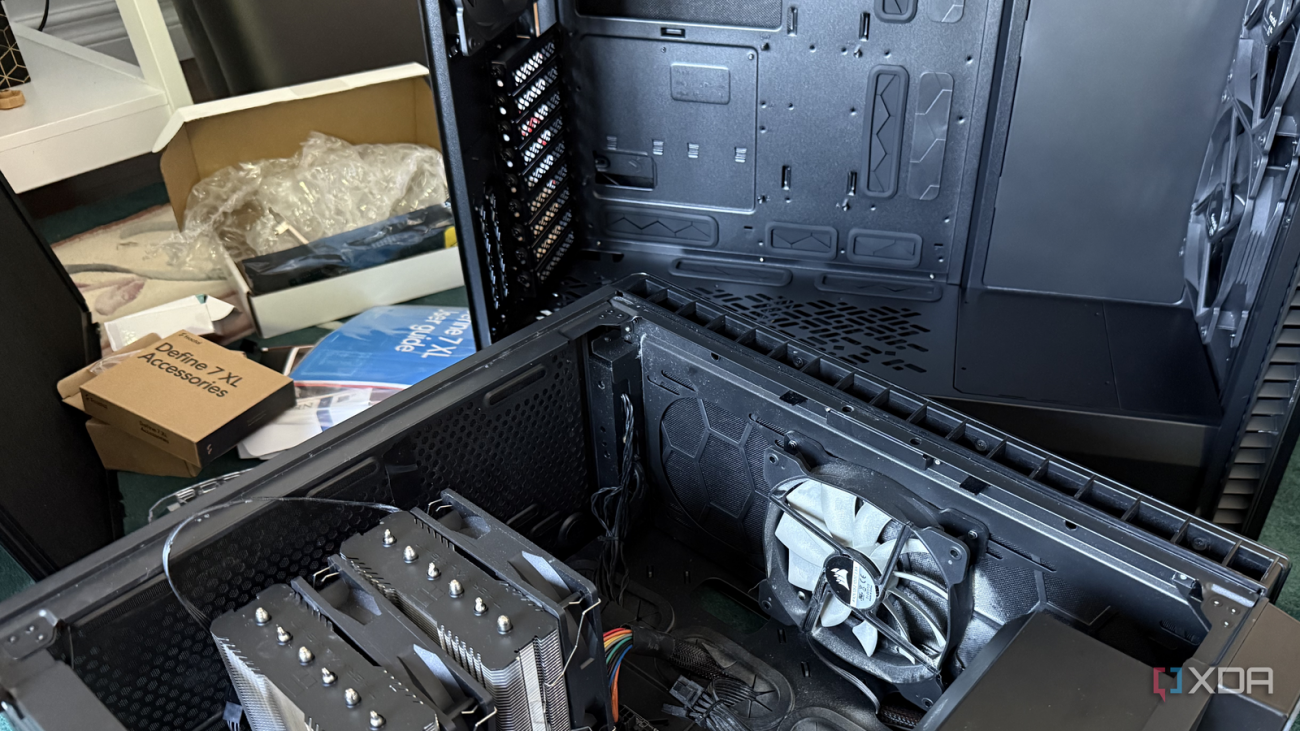

I haven’t been paid a cent by them, but I do love to sing their praises regardless. They’re easy to build in, come with all the creature comforts you could want, and have well-thought-out designs that make using them easy. The Define 7 XL that I’ve chosen to transplant my home lab into was the case I had been eyeing for a while now, and for good reason.
The headline win is storage, but it’s really two things bolted together: capacity and cooling, and for an enterprise SAS array like I was installing, you can’t separate them. My old case was not incapable of running the two SAS drives with the LSI card I bought in theory, but in practice, it leaves me with zero upgrade path and leaves the drives themselves with zero airflow.

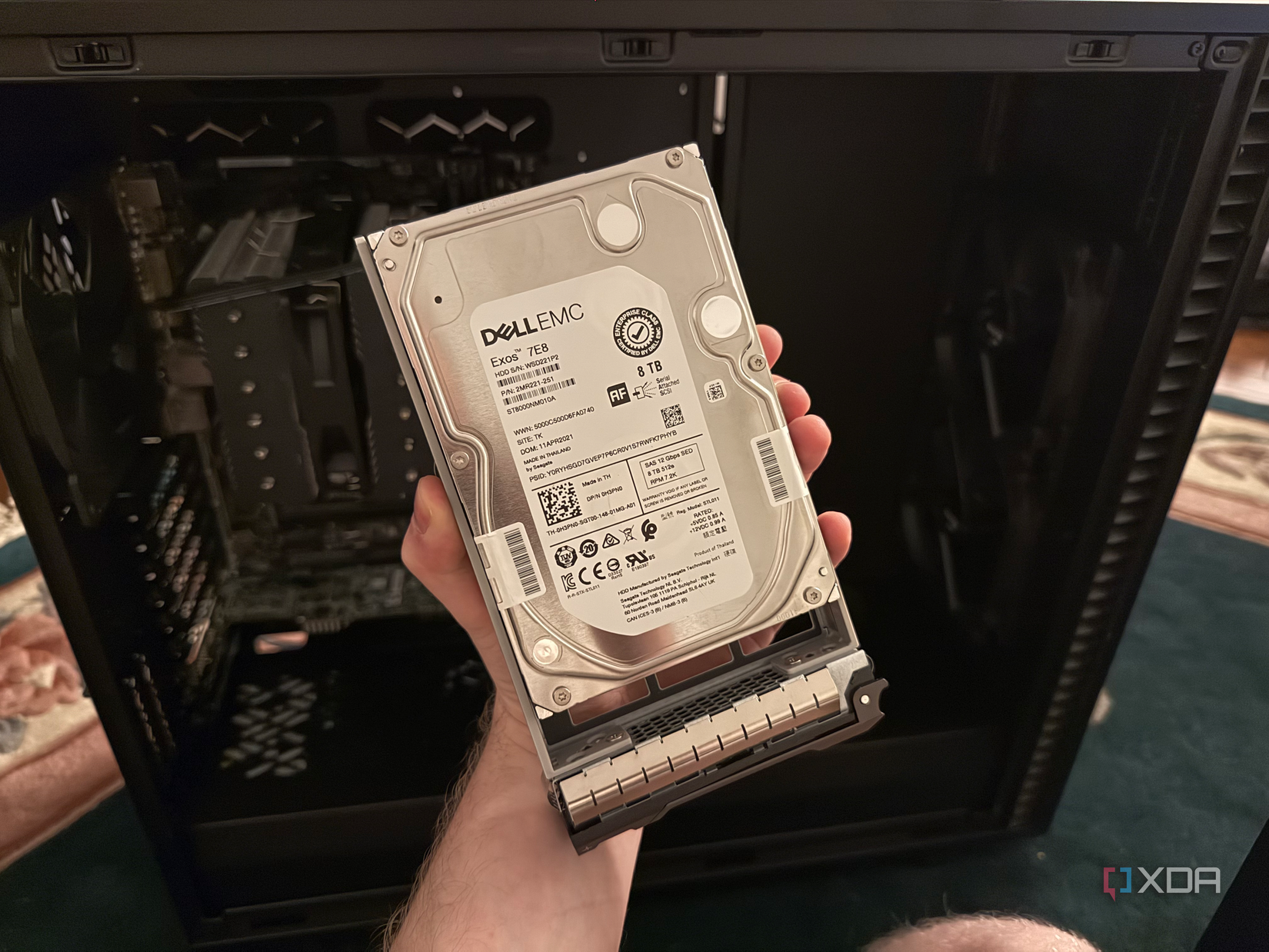

My drives are Dell-badged Seagate Exos 7E8 SAS disks, 7200 RPM enterprise units that run warmer than the consumer drives most cases are designed around, and heat is the one variable that quietly shortens a drive’s life. In the old chassis, they would have been mounted underneath the PSU shroud, as I had attempted to mount them in the Fractal case originally, just to see if I could get away with it.

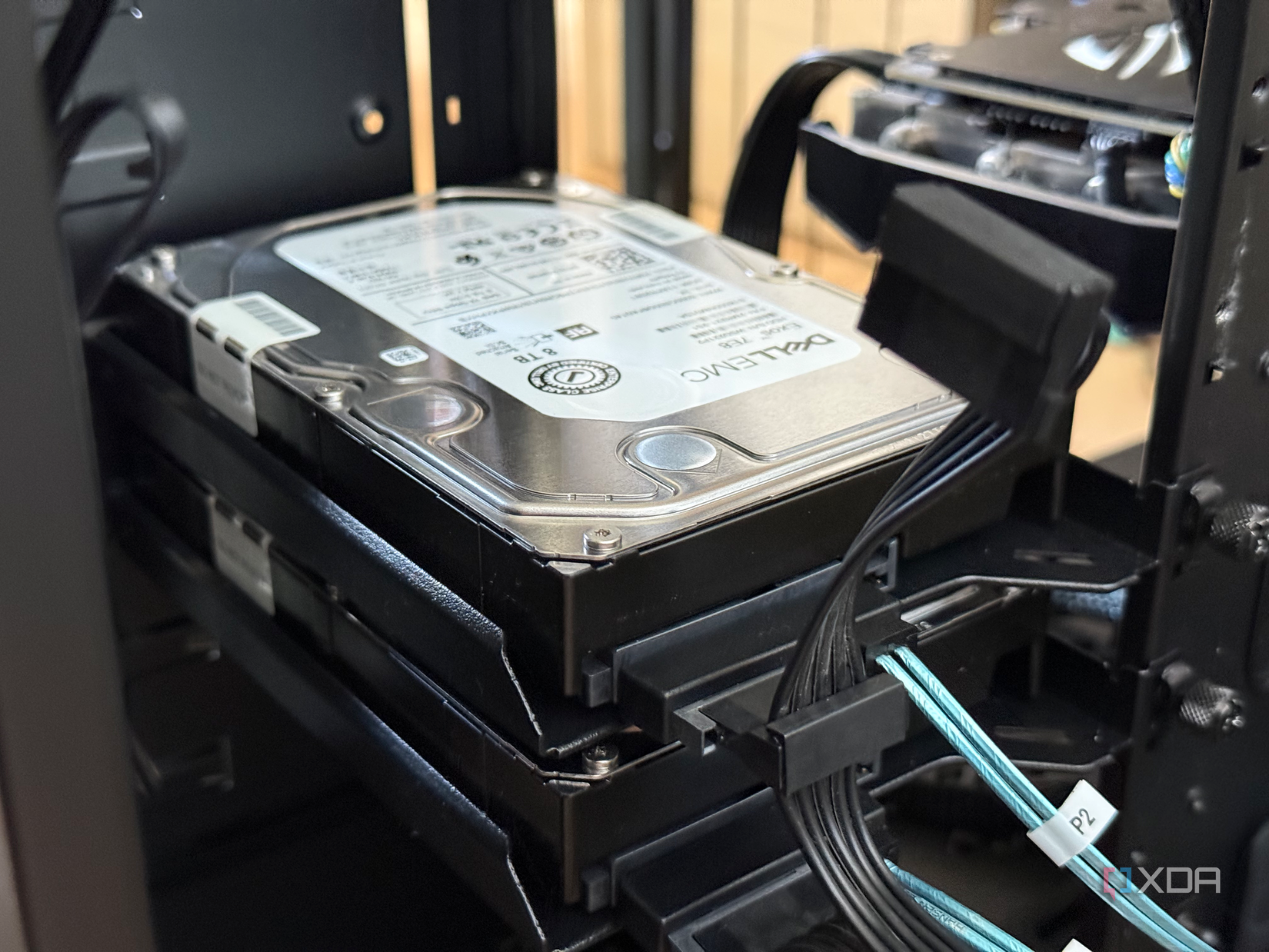

Spoiler: I couldn’t, and the drives routinely hit over 55 degrees, and during the initial ZFS format, they reached 60, which is too hot for me. In the proper storage configuration, the drives sit at the front of the case in the direct path of the intake airflow, meaning the two 140mm fans at the front pull air across the array instead of letting it bake. I haven’t seen these drives at a degree above 41 since this change. Any case with proper airflow over drives would’ve been appropriate and worth the upgrade here.
A storage card may not seem all that impressive, but it’s a great investment for your server
As I continue to add more drives to this case, I expect that the acoustic profile will start to mount. Enterprise drives aren’t super loud when there’s only two of them in an array, but once I have twice or three times that, sound dampening will start to matter. In a thin-walled mid-tower, that noise has nothing to stop it. The Define 7 XL has dense sound dampening material on both side panels, and the drive trays themselves have vibration-dampening, which further helps matters.
The front door opens to reveal the entire front panel that’s currently dedicated to intake, which is nice, but it comes with a trade-off: closed, the system is a lot quieter, but drives creep up in temperature a tad. I keep it closed for now, as the thermal load isn’t enough to require prioritization of airflow.
I’ve been self-hosting LLMs for quite a while now, and these are all of the things I learned over time that I wish I knew at the start.
A home lab is a machine you maintain for years, not a build you finish once, and a full tower gives you the space to actually do that maintenance. I can reach my LSI 9207-8i, route the SAS breakout cables cleanly, and reseat a drive without performing surgery on the rest of the build. You don’t need a Define 7 XL for this—nearly any full-tower will feel good to grow into as a home lab, I just happened to go with an especially large chassis.
Then there’s the headroom. More tray positions, more fan mounts, room for a larger PSU, space for a second HBA down the line, and space for a full EATX or even SSI-EEB motherboard if I really want to go down the true server route. Upgrading the case first before reaching for those upgrades gives me a smoother path to making those changes.
An old, dormant system has the potential to replace subscriptions worth hundreds of dollars a year
A case is probably the least impactful upgrade you can make in regard to raw capability. Your lab’s capacity to run more services or store more data doesn’t improve with a case upgrade. For what a Define 7 XL costs, I could have bought another Exos drive and had more usable terabytes today, or more RAM for a bigger ARC and more containers, or a 10GbE NIC and actually moved files faster.
But at some point, I’ll need space for more drives, and those drives will require airflow. I’ll want to upgrade to a larger motherboard platform, install another GPU, and be able to keep all of it quiet enough to be in the same room as me. Spending a significant amount on a case before spending it on the raw “counting” upgrades might seem backwards, but it’s the best choice I could’ve made.
